1/14 Earth Mover ZW370 Hydraulic Wheel Loader

Send email to Eaglemach@foxmail.com if any assistance needed

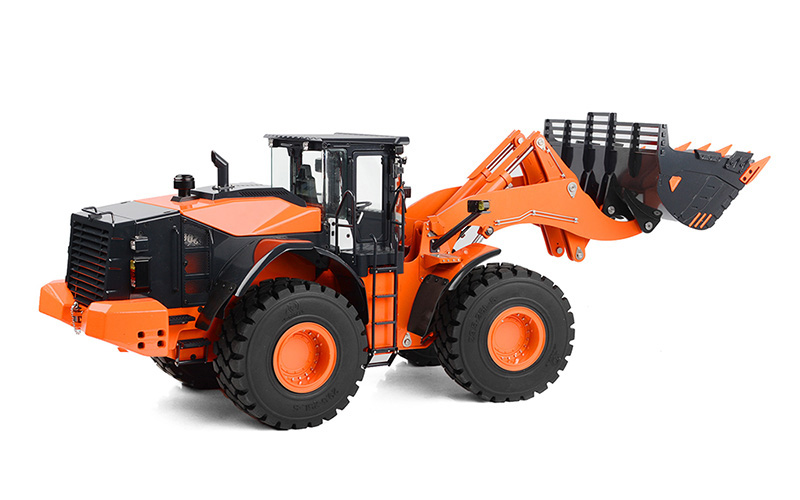

1/14 Hitachi ZW370 RC Hydraulic Wheel Loader Model

Hobbies Exclusive,Affordable Price!!!
Hydraulic / Metal / Ready-to-Run / Battery Powered

Originated from world famous engineering construction machine,massive power for heavy duty construction work,16.5kgs weight,streamline profile designing,powerful engine sound soul plus dazzling light system,it will be the most popular rc dumper in the world!

Specifications:

• Material: CNC Machined Metal Parts
• Molded Steel Bucket
• 10 Channel 2.4Ghz Radio
• Optimized Steel Hydraulic System
• Scale Operator Station (can fit a driving figure)
• 137MM Model Special Tires
• Reliable Hydraulic Valve and Adjustable Pump
• High Pressure Nylon Hoses (OD 4.5mm , ID 2.5mm)
• Powder Coated in Orange
• Brushless System (hydraulic)
• 40A Brushless ESC with BEC
• 270KV Brushless Monster Torque Motor
• Realistic Non Functional Disk Break
• Wheel with Planetary Gearbox Built-in
• 2 Speed Full Metal Transmission (1:64 and 1:16 gear ratio)
• Realistic Full Metal Axles
• Run Time is: 30 minutes (5000 mAh Battery)
• LiPo Cutoff
• Scale: 1:14
• Length: 27.9in / 710mm
• Width: 9.84in / 250mm
• Height: 10.5in / 268mm
• Wheel Base: 9.92in / 252mm
• Maximum Bucket Height: 18.1in / 461mm
• Operating Oil Pressure: 3.50 Bar, 50.75 psi
• Maximum Bucket Up and Down Angle: 46 to 64 degrees
• Maximum Bucket Left and Right Angle: 38 degrees
• Maximum Bucket Force: 40kg / 88lbs
• Dead Weight: 16.5kg / 36.3lbs
• Total Mass Load: 32kg / 70lbs
• Theoretical Rise: 15kg (Boom Lift).Theoretical Traction: 30kg
• Hydraulic Pump: Flow 0.8 L / MIN, Rated Pressure 2.5 MPA Ultimate Pressure 5 MPA

What's Include:

A Ready-To-Run 1/14 RC Hydraulic Wheel Loader ZW370 with Radio Control,with sound module&light Module!

Without battery,Machine will be shipped without oil!

Operation Demonstration
