Brand Name:
Eagle Machinery
Model Number:
JD-100
Package Type:
Carton

Email us at Eaglemach@foxmail.com if assistance needed!

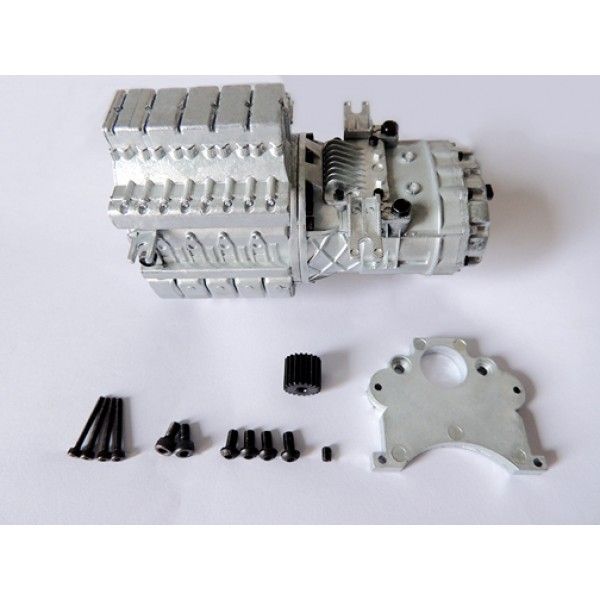

JD-100 Continuously Variable Transmission Gearbox



Technical datas:

Max.Ratio 1:61.44;

Min.Ratio: 1:9.83;

Gear Ratio: 1:24.576;

Belt Pulley Ratio: 1:2.5 when start up; 2.5:1 when Max Rotation Speed.

Recommend Motor:

12V 540 brushed motor to work with,27T-35T(13200-16500RPM)

12V 540 Brushless motor to work with 1300-1500kv(15000-18000RPM).

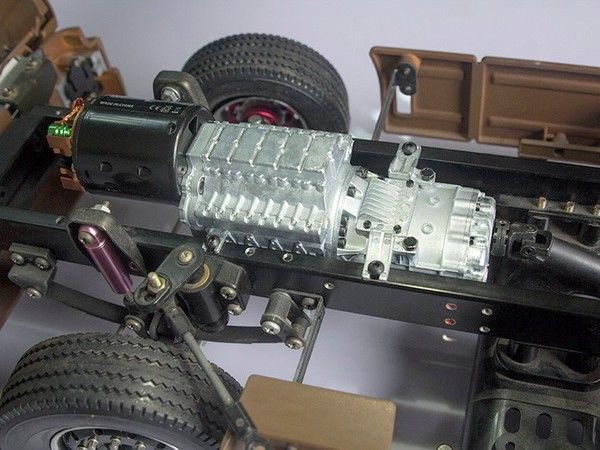

                        Instruction:

                        1.Use M3*6 round-headed screw fixed CVT gearbox:



                        2.Fixed plate on original position:



                       3.Fixed truck shell in original position:



                      4.Installation Done
