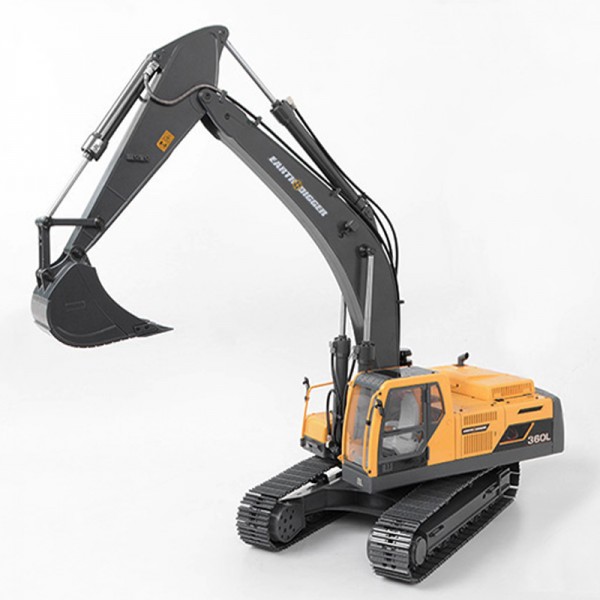

1/14 RC Hydraulic Excavator 360L
Full Brushless System,Eagle Machinery JD Series Excavator Model 2.0 Version !
Hobby Exclusive !!!
1.More advanced hydraulic system
2.Faster responsive time
3.Higher flow hydraulic pump
4.More stable undercarriage
5.More scaled details
6.But same affordable price
Thank you very much for our customers' support these years,we will constantly work hard to provide our dear customers affordable,but high performance&details hydraulic model!
Specification:
• Scale: 1:14
• Kirsite&Alum-Alloy body(except track and hydraulic pump&valve)
• Custom 8 channel 2.4Ghz radio
• High intensity light socket(can fit light,not included)
• Optimized steel hydraulic system
• Scale operator station (can fit a driving figure)
• Track width 248mm, wheelbase 303mm
• Efficient undercarriage
• Reliable upgraded hydraulic valve and adjustable pump
• Heavy duty hoses (OD 4.5mm Nylon, ID 2.5mm)
• Undercarriage rotate degrees 360
• Powder coated in yellow&grey
• Massive full brushless system(including driving&turning)
• Hydraulic system 60A brushless ESC,driving&turning system 30A brushless ESC
• 270Kv brushless monster torque motor,shaft dia. 3.0mm
• Run time is: 20 minute based on 4200mAh,11.1V battery
• Steel machined oil pump (60mm X 60mm X 93mm)
• Digging force: 15KG
• Max lifting force: 70KG
• Driving speed: 360 meter per hour
• Length: 823mm
• Width: 234mm
• Height: 260mm
• Deadweight: 26kgs
What's Include(RTR):
A Ready-To-Run 1/14 RC Hydraulic Excavator 360L Machine with Radio Control,without battery!
Machine will be shipped without oil!
Important Notice:
1. Do not operate before signal confirmation finish!!! (First turn on the RC control,all joystick on up position,then connect machine power,after 4 sounds signal confirmation(about 5 seconds),then operate!
2. Do not change radio controller factory default setting!!!
.jpg)
.jpg)
Empty Machine Version As Below(without eletronics,valve,pump&radio etc)
