Brand Name:
Eagle Machinery
Model Number:
JD-88
Package Type:
Carton With Foam



Email us at Eaglemach@foxmail.com if assistance needed!

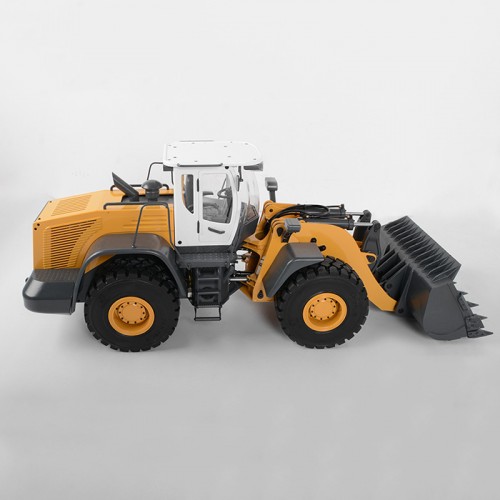

Special Edition 1/14 Scale RC Series Hydraulic Wheel Loader 870K

A Masterpiece Of God,Hobbies Exclusive!

Full Metal,no 3D Print Parts!




1:14 / Hydraulic / Full Metal / Ready-to-Run / Battery Powered



Originated from Chinese engineering machinery pioneer LG,JD-88 RC Hydraulic Wheel loader is designed with massive power for heavy duty construction work,which can easily push a 75kg adult forward,plus a streamline profile designing and powerful engine sound soul,it will be the most popular RC Hydraulic model in the world!



• 100% CNC machined aluminum
• Custom 9 channel 2.4Ghz radio
• Optimized steel hydraulic system
• Efficient under carriage
• Wheel Width 55mm,wheelbase 284mm
• Scale operator station (can fit a driving figure,seat installed)
• Axles A3 steel and aluminium alloy
• Reliable hydraulic valve and adjustable pump
• With Engine sound module
• Heavy duty hydraulic hoses (OD 3.0mm,4.0mm Nylon, ID 2.0mm,2.5mm)
• Max undercarriage steering +/-38 degrees
• Powder coated in yellow and dark grey
• Massive brushless system (hydraulic)
• Hydraulic system 60A brushless ESC,driving system 320A brush ESC
• 800Kv brushless monster torque motor
• Battery: Lipo 3S,5000mAh,11.1V
 • Steel machined oil pump (51mm X 40mm X 36mm)
• Max. up digging force 15kg,Max.lifting force 70kg,Max.lifting height 461mm
• Driving speed: first gear,6m/min,second gear 18m/min
• Operating oil pressure: 25Bar
• Scale: 1:14
• Bucket: W.252mmxH.123mm
• Length: 741mm
• Width: 249mm
• Height: 276mm
• Deadweight: 21kg,Max loading weight 15kg





What's Include:

A Ready-To-Run 1/14 RC Hydraulic Wheel Loader Machine with Radio Controller,without battery!

Machine will be shipped without oil!



Important Notice:

1. Do not operate before signal confirmation finish!!! (First turn on the RC control,all  joystick on up position,then connect machine power,after 4 sounds signal confirmation(about 5 seconds),then operate!


2. Do not change radio controller factory default setting!!!





Great Sharing Video of 1.5 Version on youtube from Mr.Michael in Belgium:

http://www.youtube.com/watch?v=kdeyL-t1ezE








New Yellow Color And White Color:









Sharing Photos From Customers In UK






Shipping Policy
Generally speaking,we can ship to virtually any address in the world!However there are restrictions on some products, so they cannot be shipped to international destinations. Limited/Restricted Payment Options may be required for some countries.You could send us an e-mail if you are not so sure,we will be glad to talk with you about these details.

And based on the shipping freight quote on our shop,usually we ship by express like DHL/Fedex/TNT or UPS etc,and it takes around 7-10 business days to reach you in countries in EU,North America and Oceania etc. And here below is the operation time for your reference.
Order Processing Time: 3-15Days.
Express Shipping Time: 7-15Days.
Free Shipping/Post Shipping Time: 15-35Days.

Return&Change
You have 15days unpon receiving your order to return and change,please contact us for instructions first for return or change,goods must be returned in its original condition.Shipping is borne by buyer,and some items are subject to be charged a 10% restocking fee based on their returned condition then refund you.

Warranty
Official channel ordered scaled hydraulic model is warranted for one year except electrical&worn parts,for your benefits,please buy from official channel! Eletronics we only gurantee full function when receiving,damage or failure due to user's error of assembly,modification,misoperation or failure to perform routine maintenance are not covered by warranty!
